ICARSOFT CR UNICORN

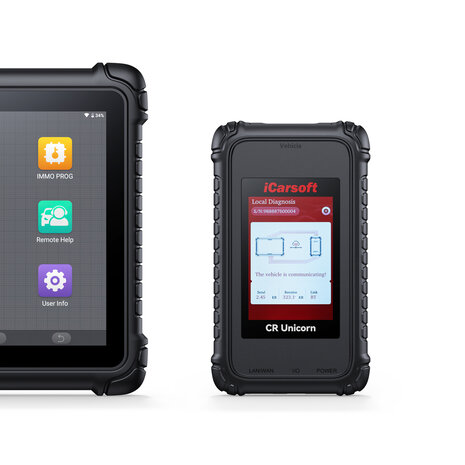

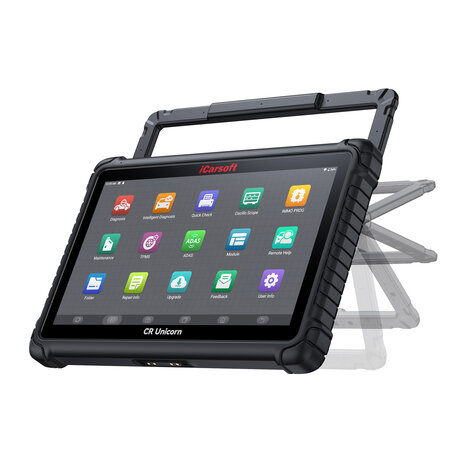

Intelligent automotive diagnostic tool | The iCarsoft CR Unicorn is a professional 13.3-inch diagnostic platform for passenger vehicles. It combines OE-level full-system diagnostics, online coding, cloud-based programming, active tests, topology mapping and a CR Link VCI in one system.
Professional diagnostic platform
- 13.3-inch Full HD touchscreen with 1920 x 1080 resolution
- OE-level full-system diagnostics for more than 200 passenger vehicle brands
- Online coding for Audi, BMW, Porsche and other supported manufacturers
- Cloud-based programming functions for more than 13 vehicle brands
- Bi-directional control / active tests and 41 hot service reset functions
- Topology mapping for a visual overview of vehicle systems
- CR Link VCI with J2534, DoIP, CAN-FD, D-PDU and RP1210 protocols
- Three years of free software updates and lifetime technical support
|
 |
ICARSOFT CR UNICORN FEATURES
Worldwide vehicle coverage |
The CR Unicorn supports OE-level full-system fault diagnosis for more than 200 passenger vehicle brands, including common Asian, American and European makes.
Online coding and cloud-based programming |
Supports online coding functions for Audi, BMW, Porsche and other supported manufacturers, plus cloud-based programming functions for 13+ vehicle brands. Function availability depends on vehicle make, model, year, ECU configuration and online access.
Topology mapping |
Displays the vehicle’s systems in a visual topology view, helping technicians quickly identify the relevant system and diagnostic path.
Three years of free updates |
Includes three years of free online software updates, one-year hardware warranty against manufacturing defects and lifetime technical support according to the manufacturer.
ICARSOFT CR UNICORN BI-DIRECTIONAL CONTROL
Active tests |
Bi-directional control can activate or test supported components and systems, such as remote controls, vehicle lights, alarms, sensors, power windows, sunroofs, mirrors and air-conditioning systems.
Calibration and troubleshooting |
Supports relevant system calibrations and assists with fault isolation by commanding supported components and observing their response.
Specific active tests depend on the exact vehicle, production year and installed ECU.
ICARSOFT CR UNICORN 41 SERVICE FUNCTIONS
OIL maintenance reset, ETS throttle matching, SAS steering angle reset, BMS battery matching, ABS bleeding, electronic parking brake reset, DPF regeneration, gear / tooth learning, IMMO anti-theft matching, injector coding, TPMS reset, suspension calibration, AFS reset, automatic transmission learning, sunroof initialization, EGR adaptation, odometer reset, airbag reset, transport mode, A/F reset, stop/start reset, NOx sensor reset, AdBlue reset, seat calibration, coolant bleeding, tyre reset, window calibration, language change, A/C system relearn, engine power balance monitoring, gas particulate filter regeneration, high-voltage battery diagnostics, intelligent cruise-control system, motor angle calibration, IM2000 Pro support, clutch matching, ECU reset, FRM matching, gateway module data calibration, rainfall / light sensor and turbocharging matching.
Service-function availability depends on the vehicle make, model, year and ECU configuration.
ICARSOFT CR UNICORN CR LINK VCI
Professional VCI protocols |
The supplied CR Link VCI supports J2534, DoIP, CAN-FD, D-PDU and RP1210 protocols for compatible modern vehicles and diagnostic applications.
Included diagnostic modules |
According to the official product page, the standard configuration includes T-WAND9000 / TPMS2000 with four TPMS sensors, printer, videoscope and battery test clip. Oscilloscope and ADAS are listed as optional modules.
ICARSOFT CR UNICORN DEVICE SPECIFICATIONS
| Screen size |
13.3 inches |
| Resolution |
1920 x 1080 |
| CPU |
MT8788, 8-core, 2.0 GHz |
| RAM |
8GB |
| Storage |
256GB ROM |
| Wi-Fi |
802.11 ac/a/b/g/n |
| Bluetooth |
BT 5.0 |
| Battery |
18600mAh / 3.8V |
| I/O interfaces |
USB Type-C, USB Type-A and HDMI |
| VCI |
CR Link |
| Camera |
13 MP rear camera |
| SD card slot |
Up to 500GB |
ICARSOFT CR UNICORN PACKING LIST
CR Unicorn main unit, CR Link VCI, T-Wand 9000, packing list card, user’s manual, password letter, charging stand, AC adapter (EU; AU, UK and US plugs are shown by the manufacturer), AI-4, B-20, battery test clip, BZ-14, BZ-38, A-to-B cable, clipper cable, cord, CR-6, diagnostic cable, FD-6+1, FT-3, fuse 5-20 x4, fuse 6-30 x2, G/V-12, GZ, HA-3, KIA 20, M/H 12+16, Mini HDMI to HDMI, NN-14+16, OBD I adapter, power adapter, printer, RJ45 network cable, SL-3, SU-9, TA-17, TA-22, TPMS S2000, Universal adapter and videoscope.
Packing contents can vary by market or delivery configuration. Confirm the exact supplied configuration before ordering.
ICARSOFT CR UNICORN PACKING LIST PHOTOS

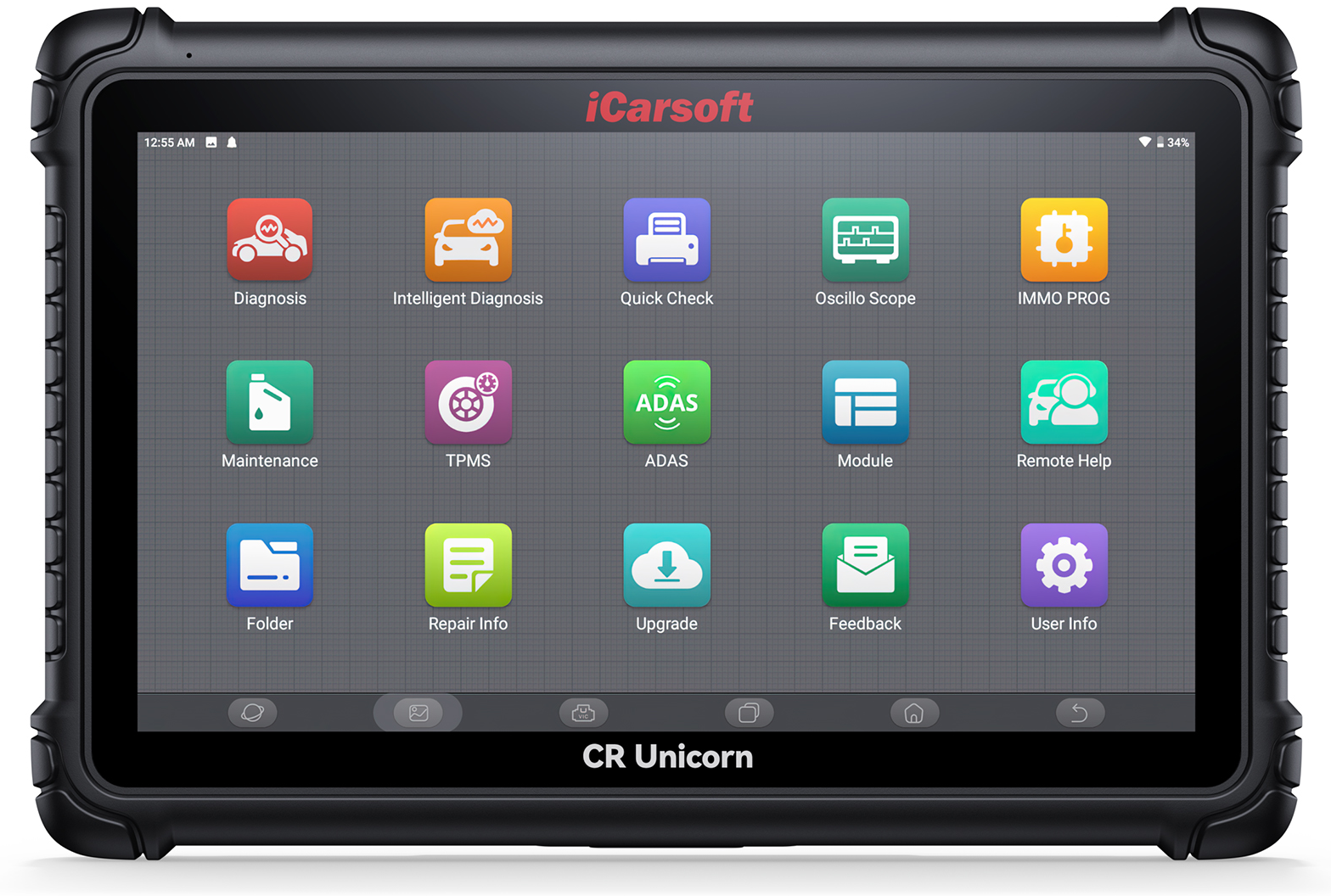

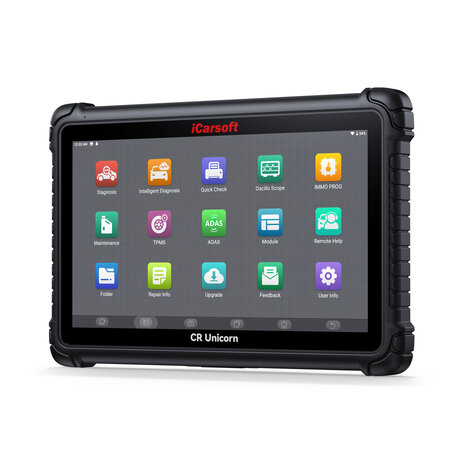

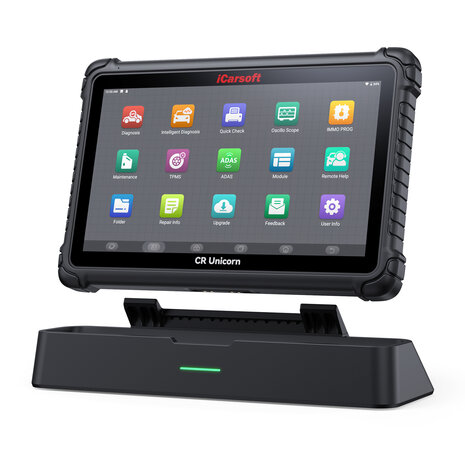

CR Unicorn |

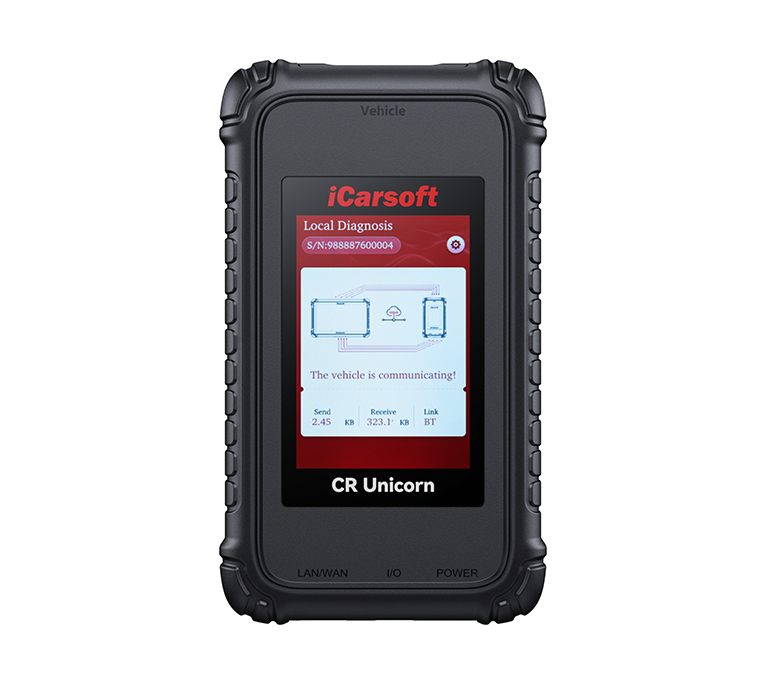

VCI |

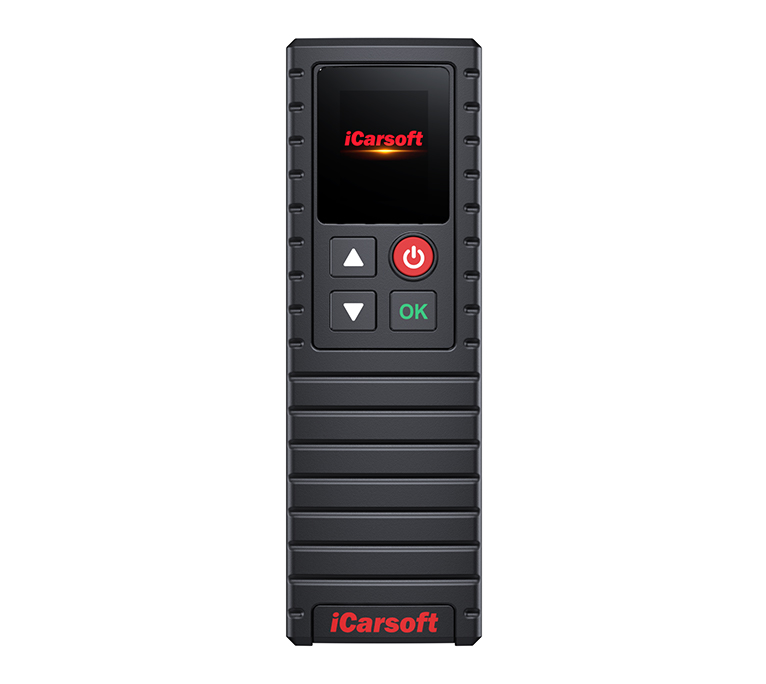

T-Wand 9000 |
Packing List |
User Manual |
Password Letter |

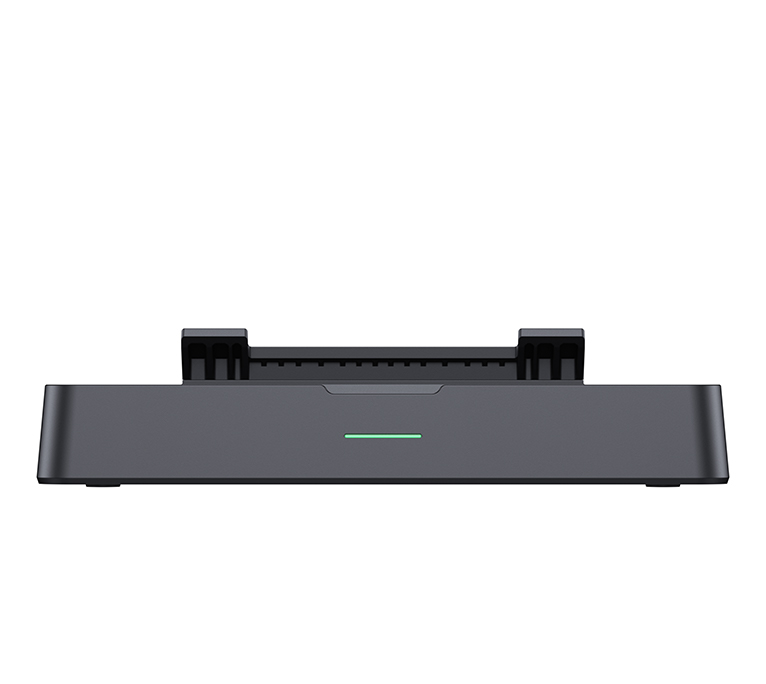

Charging Stand |

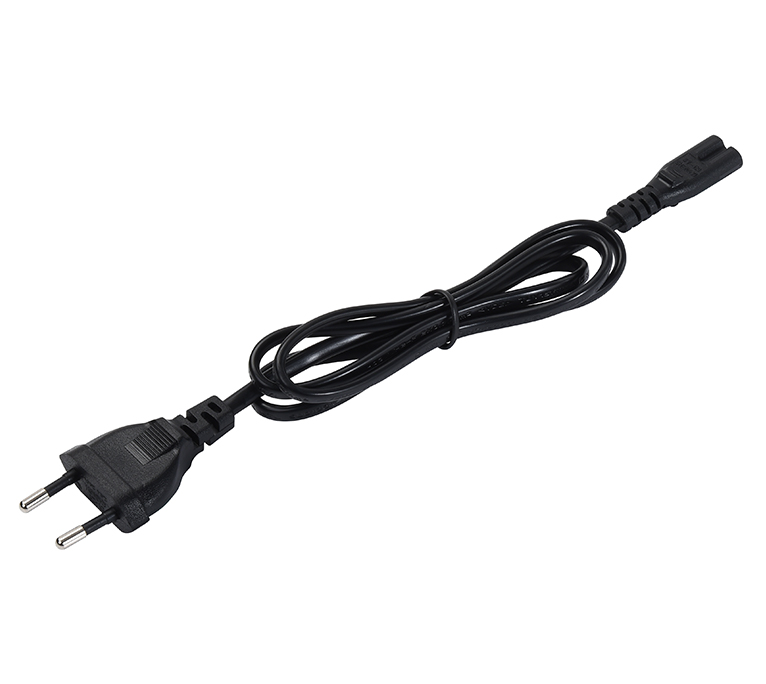

AC (EU) |

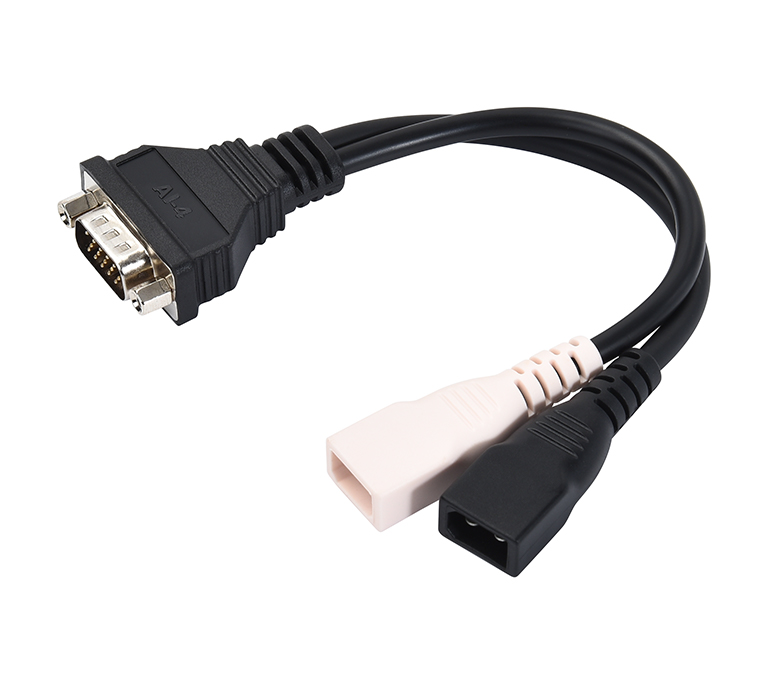

AI-4 |

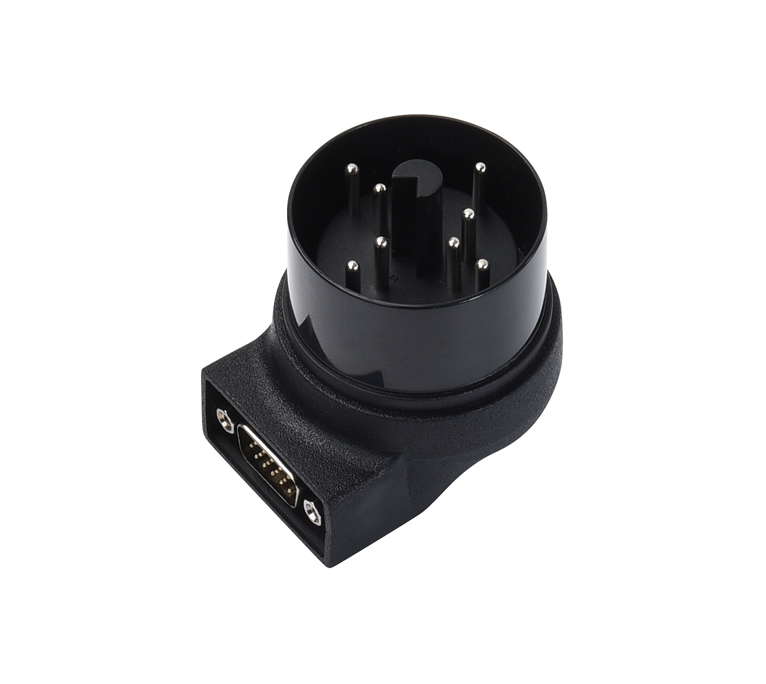

B-20 |

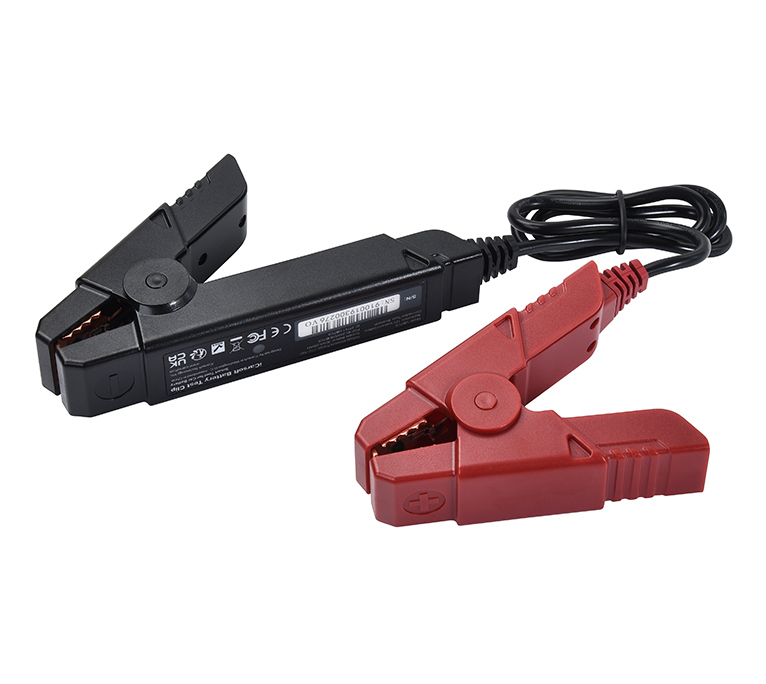

Battery Test Clip |

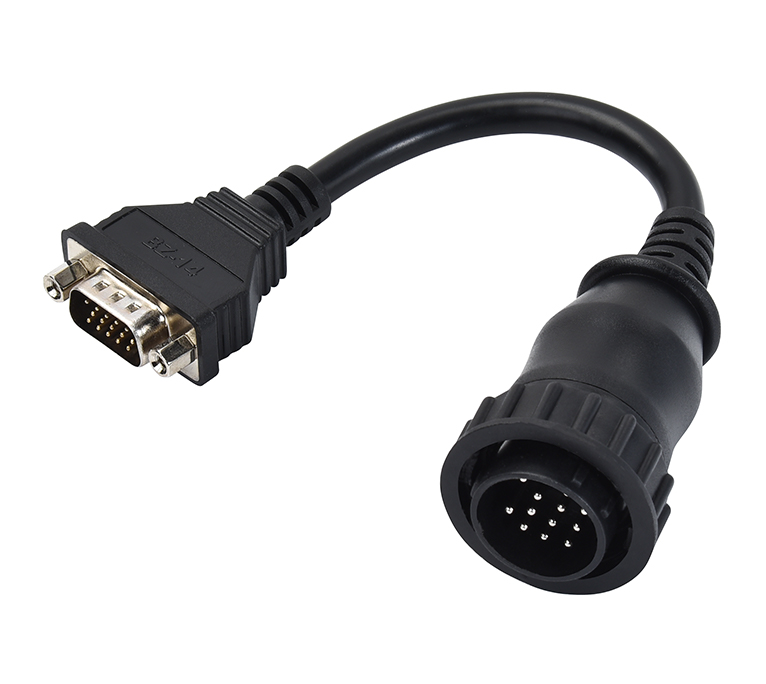

BZ-14 |

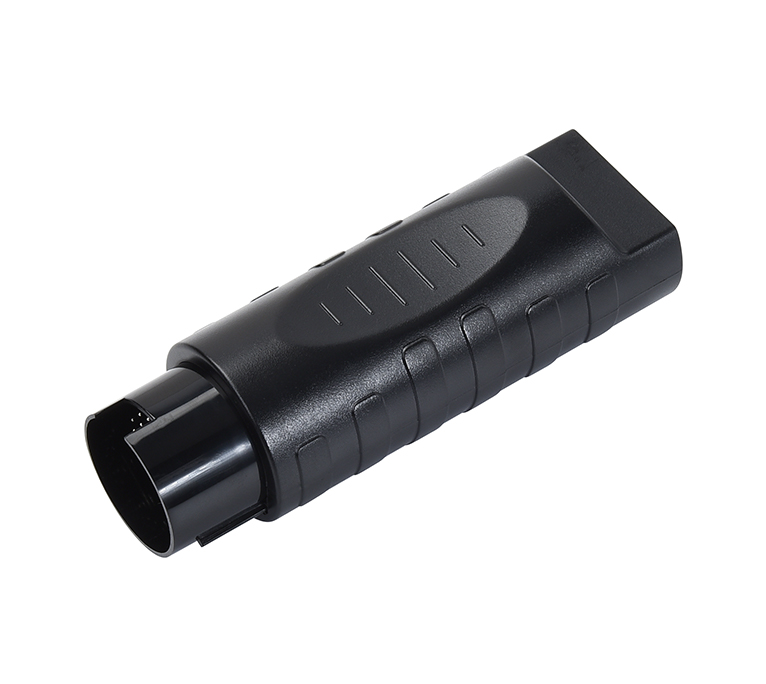

BZ-38 |

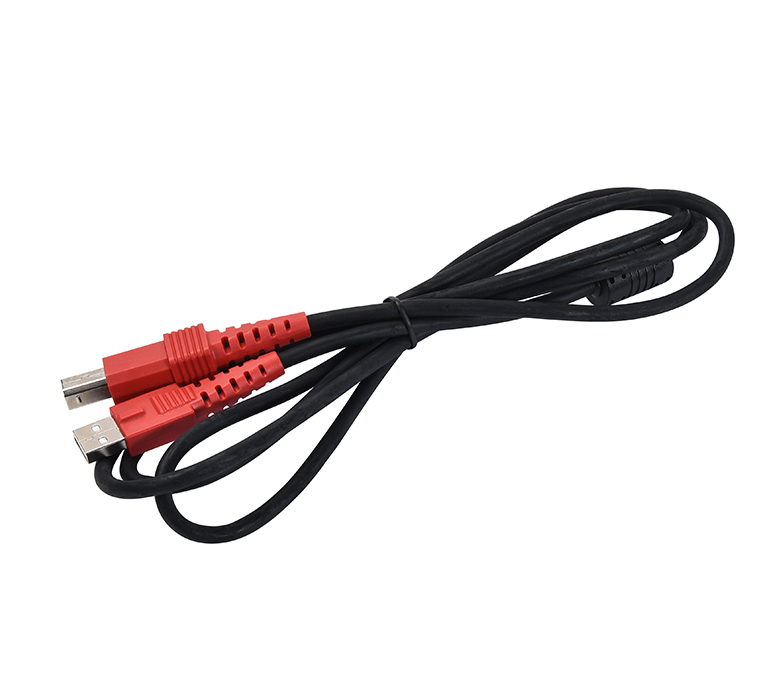

A to B Cable |

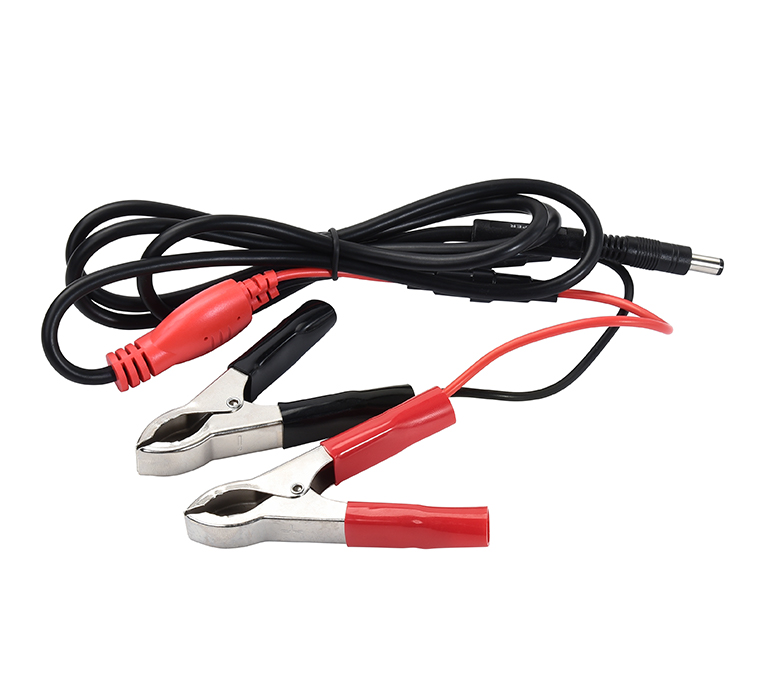

Clipper Cable |

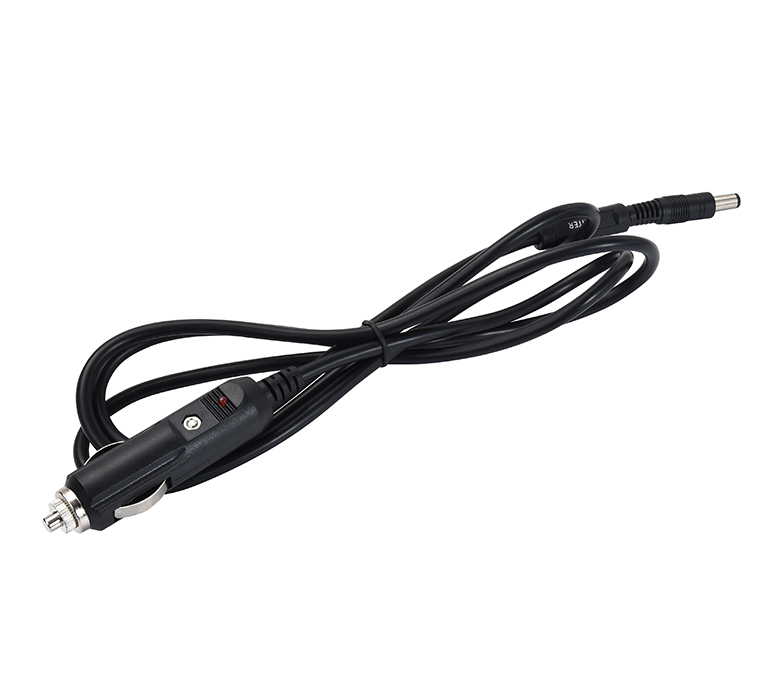

Cord |

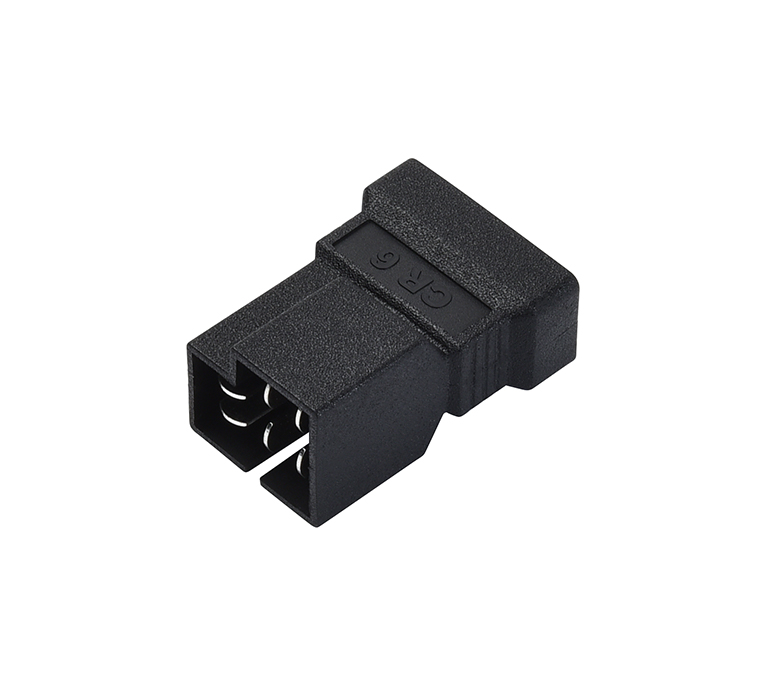

CR-6 |

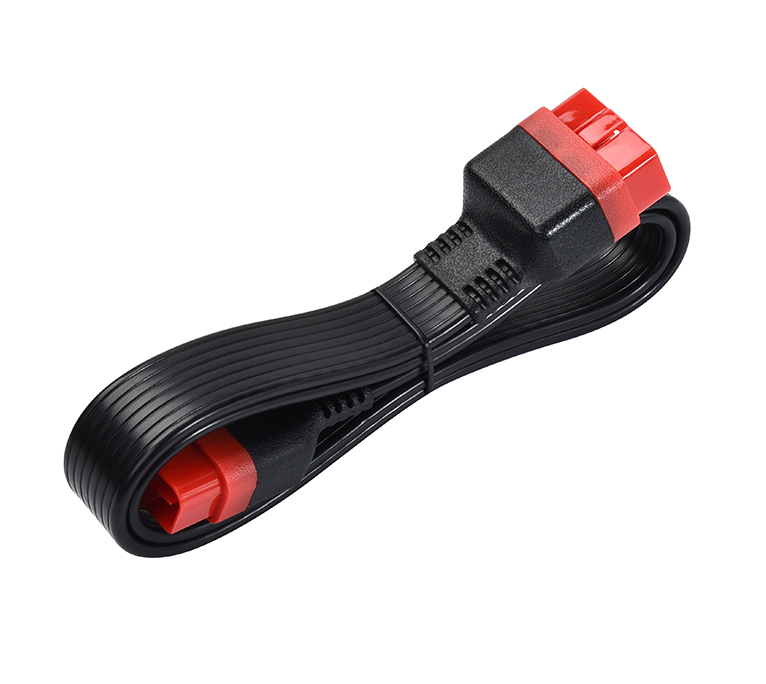

Diagnostic Cable |

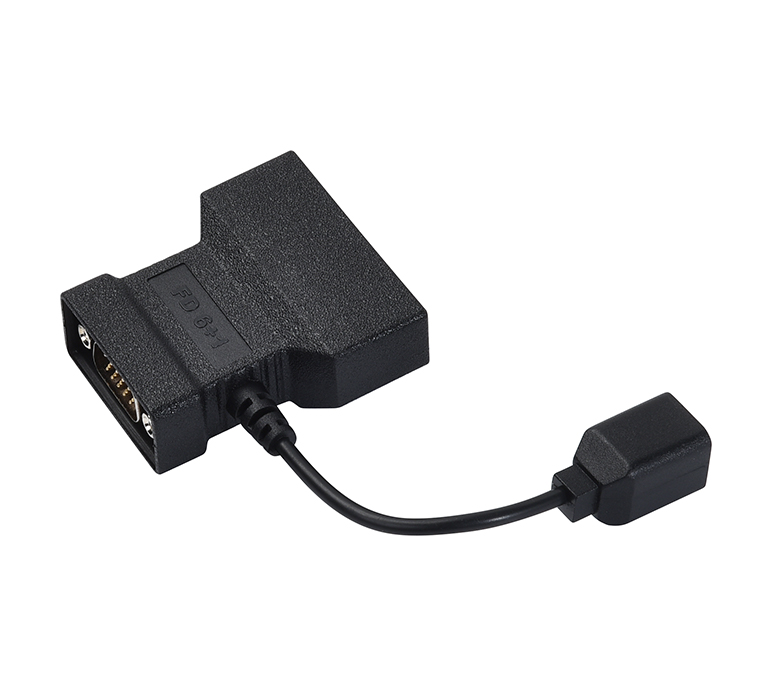

FD-6+1 |

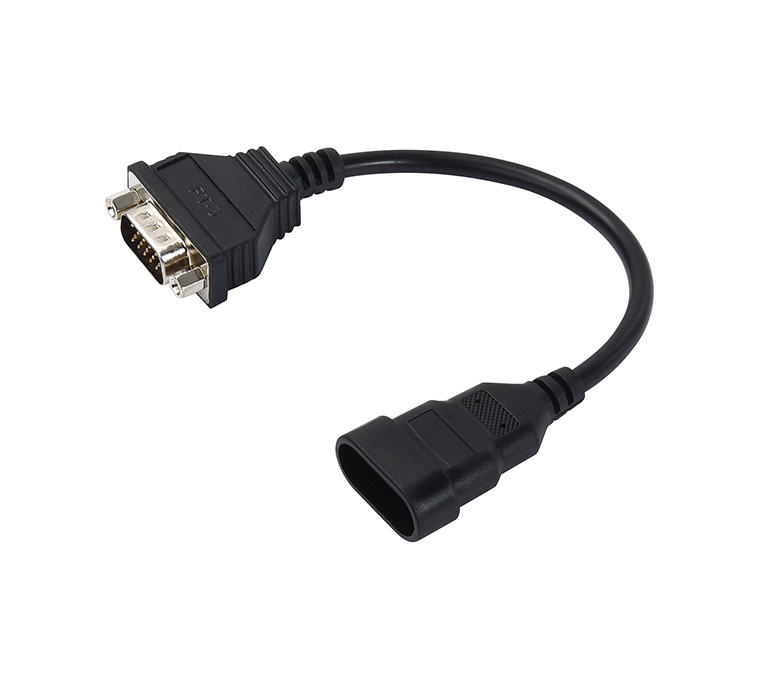

FT-3 |

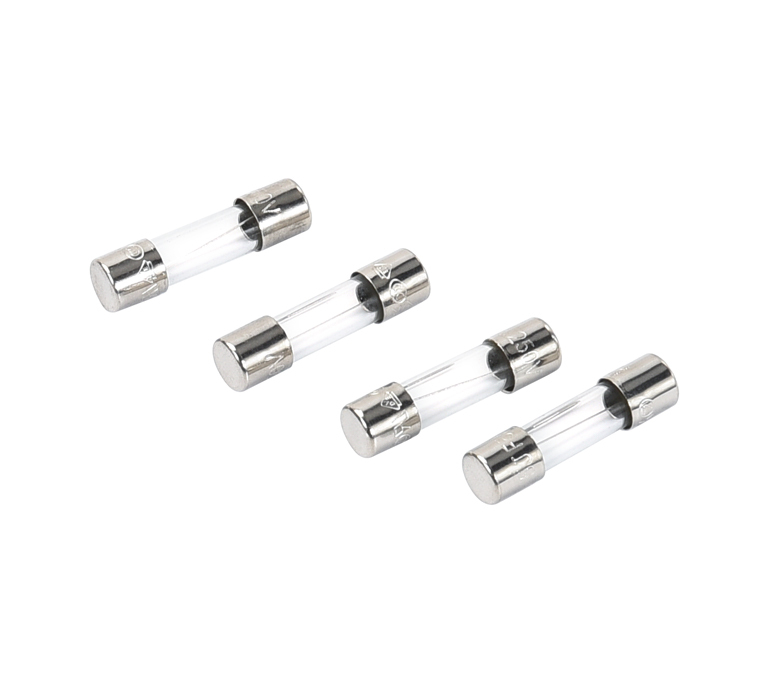

Fuse 5-20x4 |

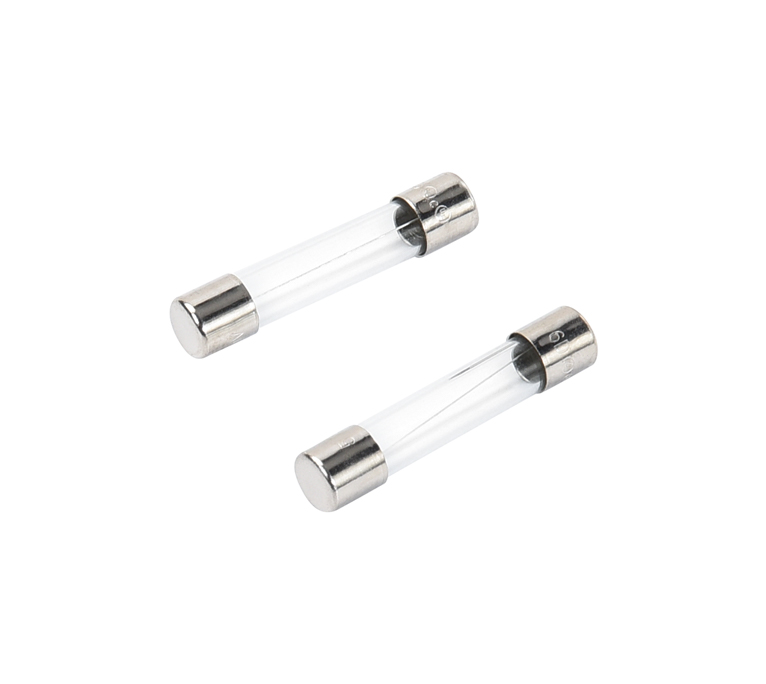

Fuse 6-30x2 |

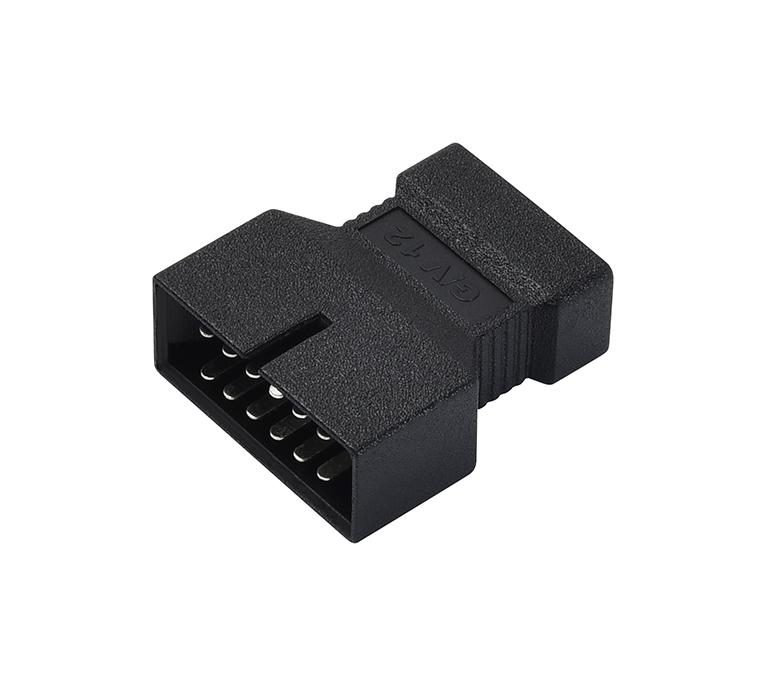

G/V-12 |

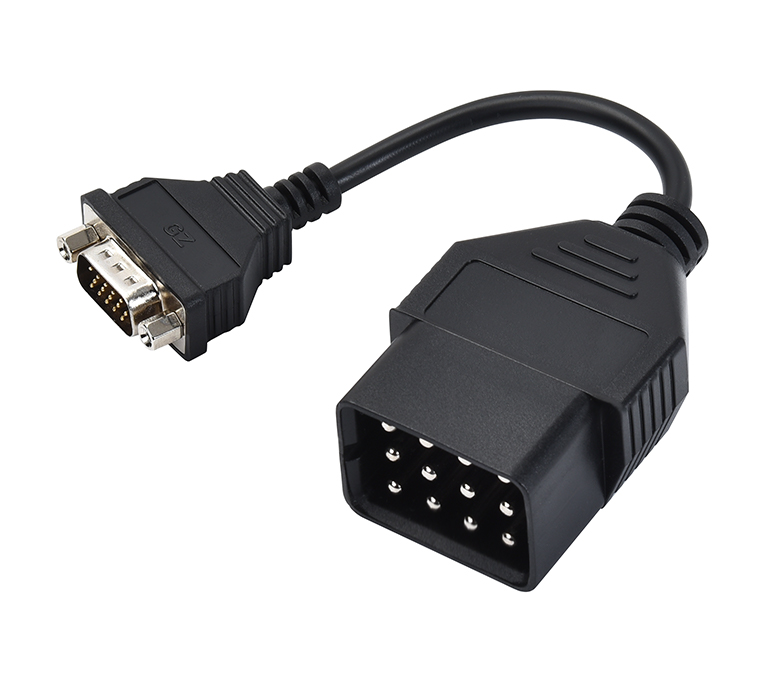

GZ |

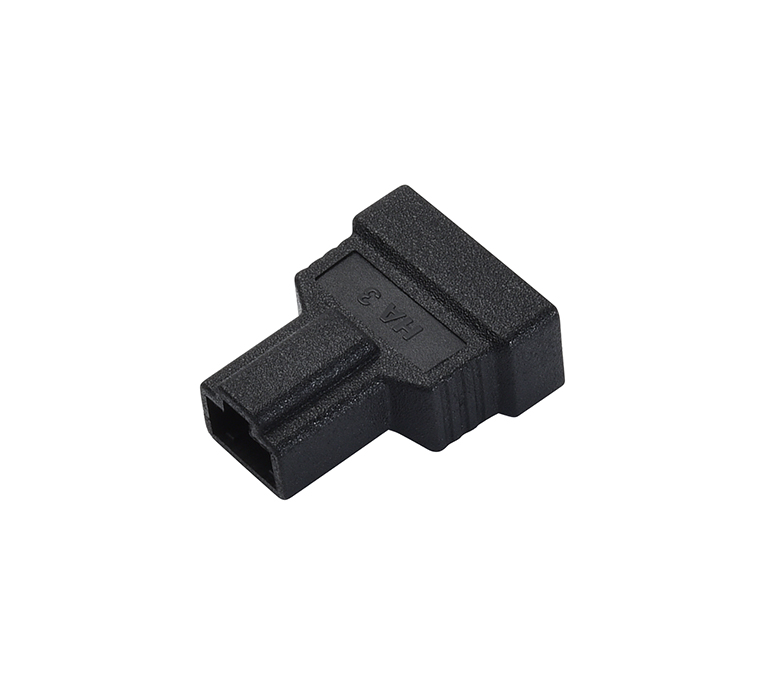

HA-3 |

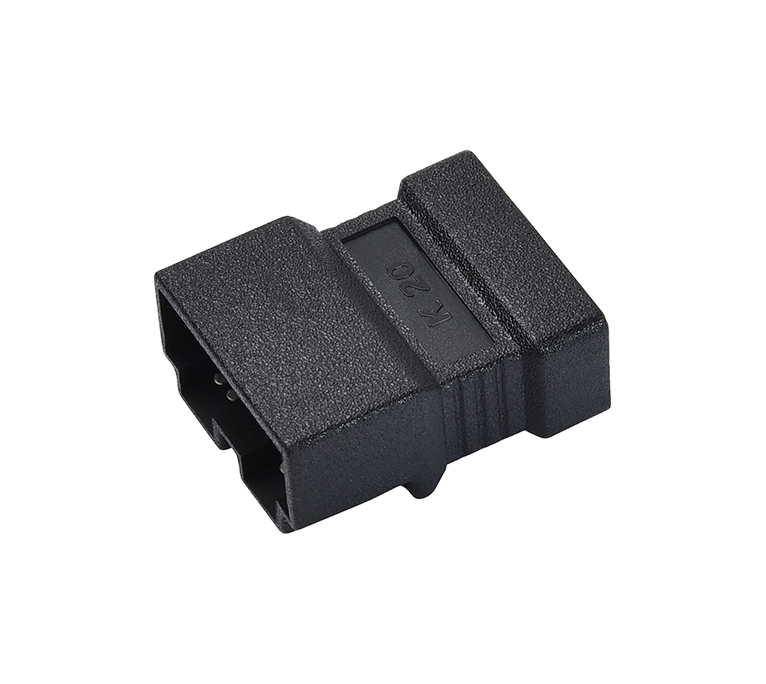

KIA 20 |

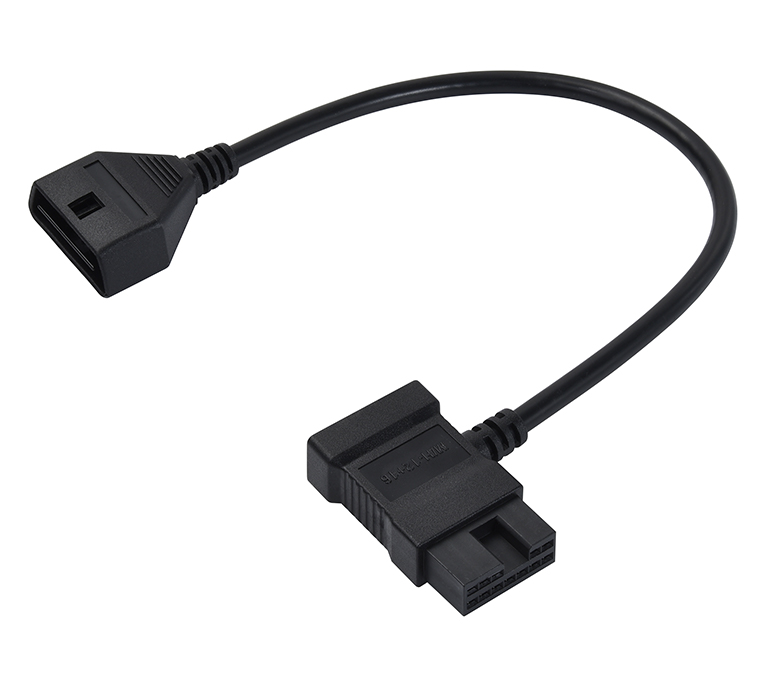

M/H 12+16 |

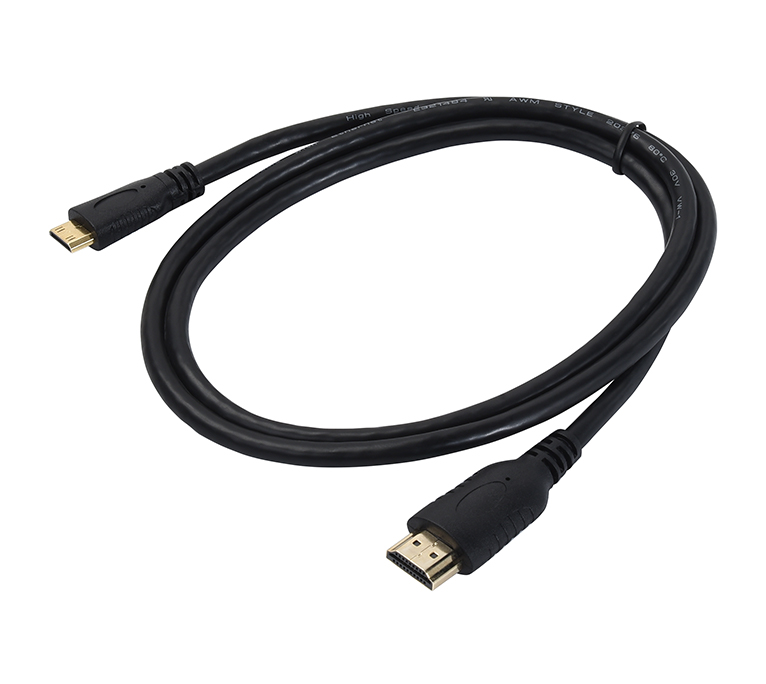

Mini HDMI to HDMI |

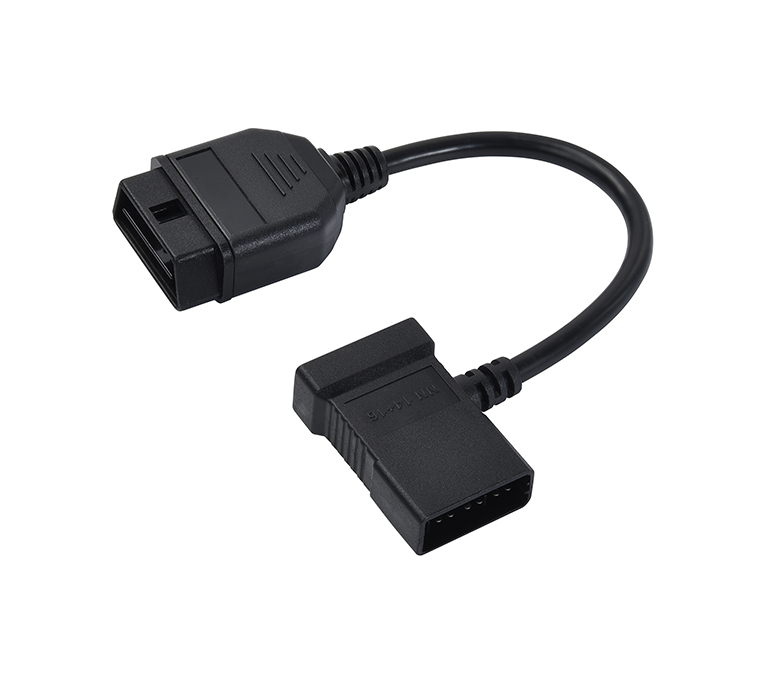

NN-14+16 |

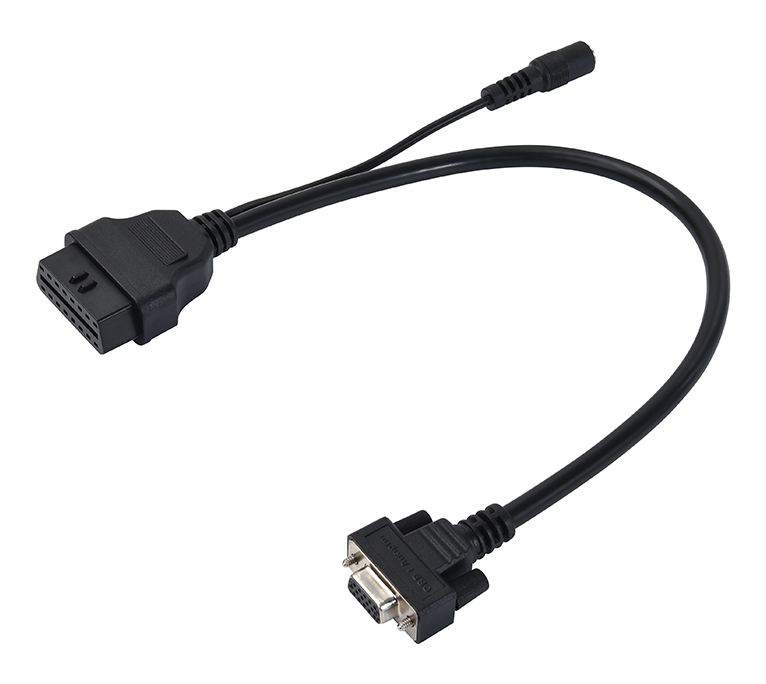

OBD I Adapter |

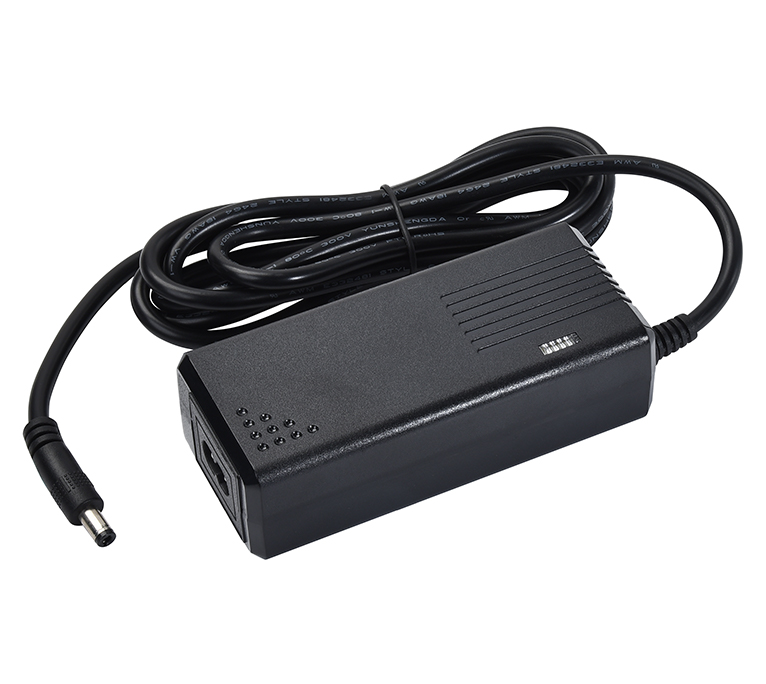

Power Adapter |

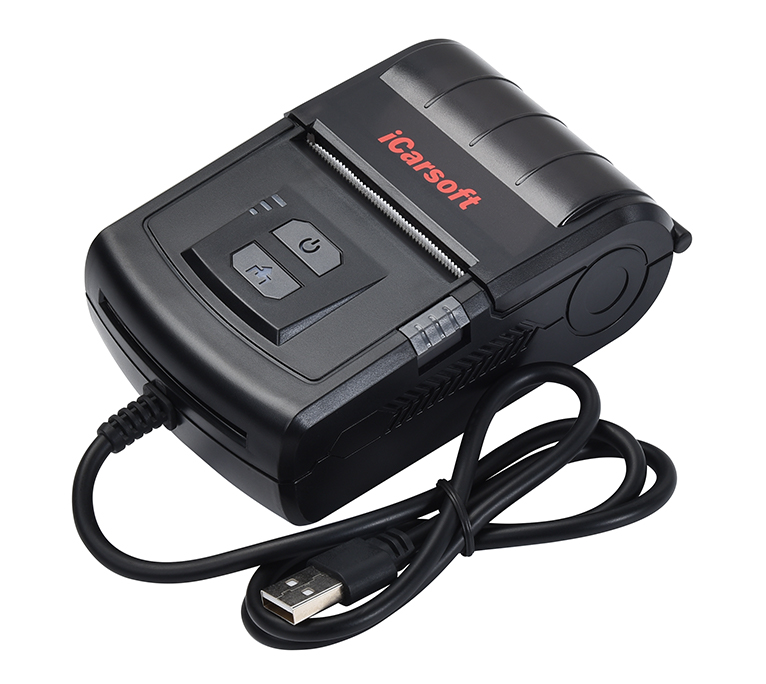

Printer |

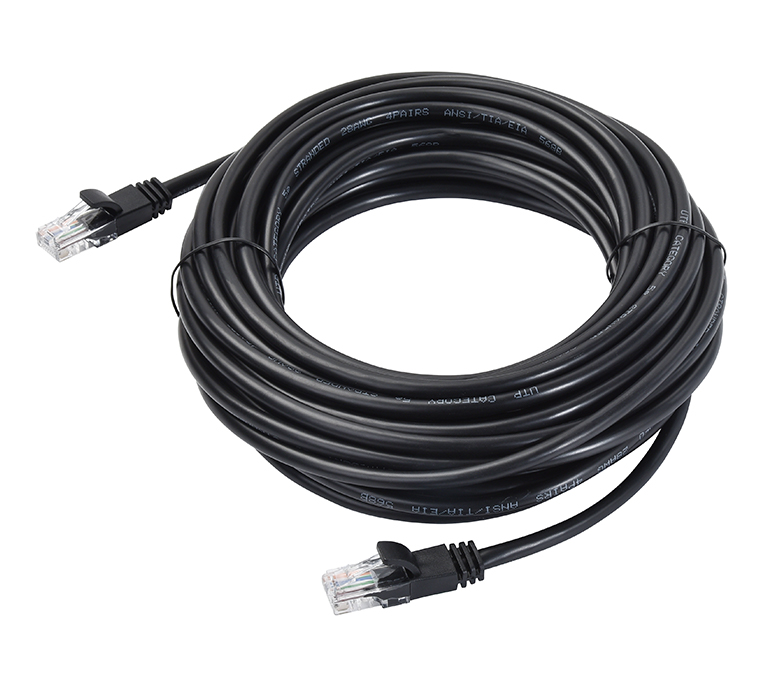

RJ45 Network Cable |

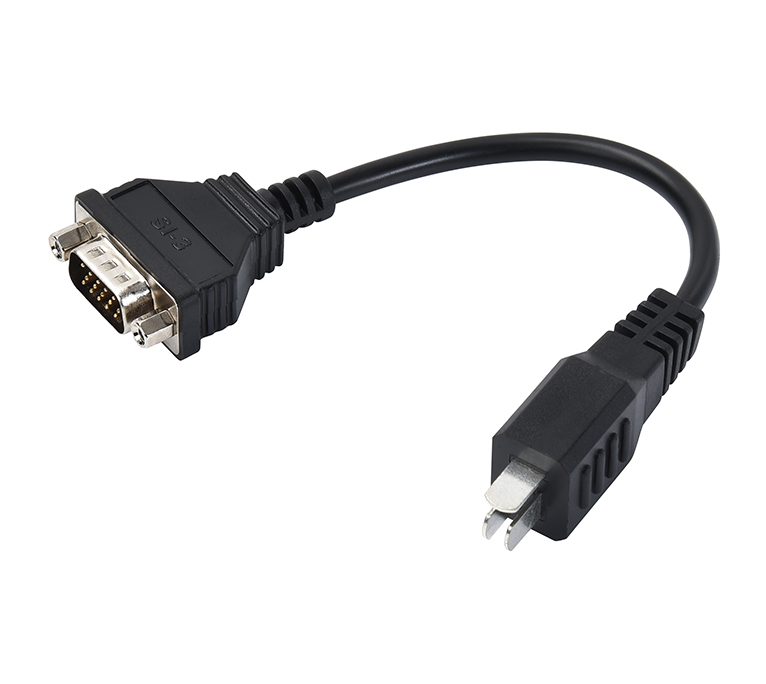

SL-3 |

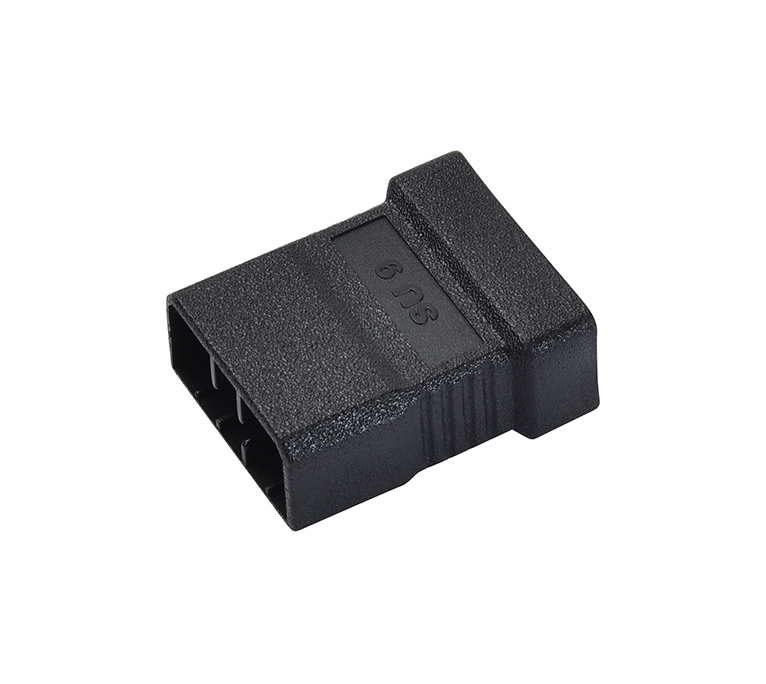

SU-9 |

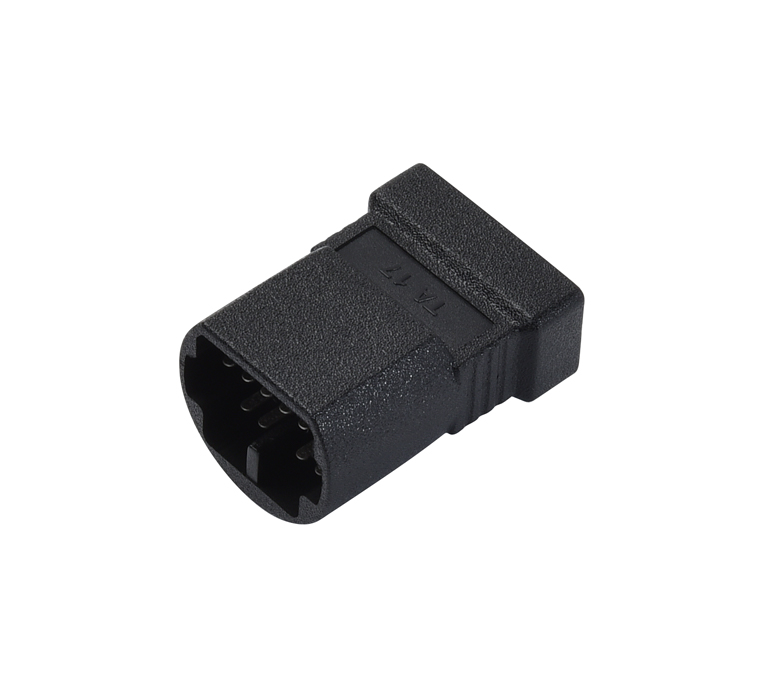

TA-17 |

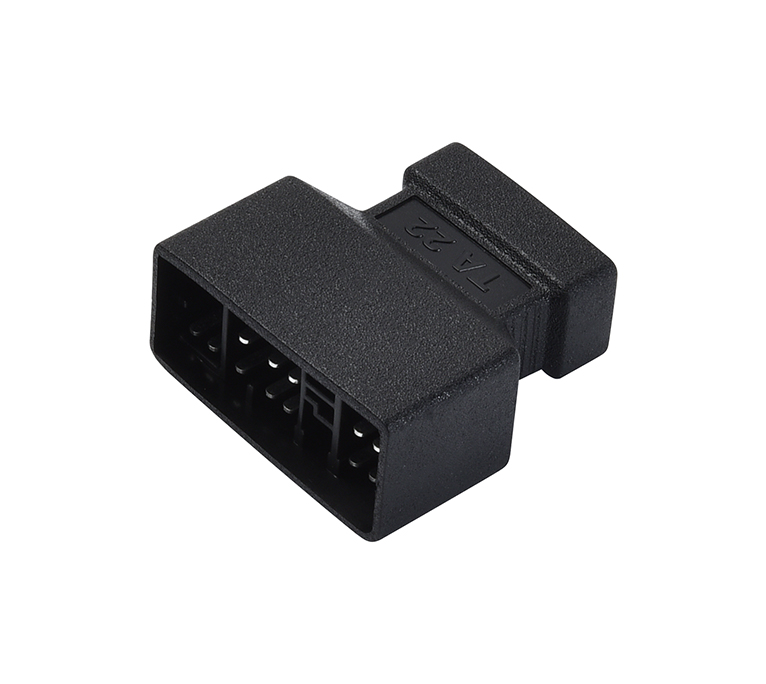

TA-22 |

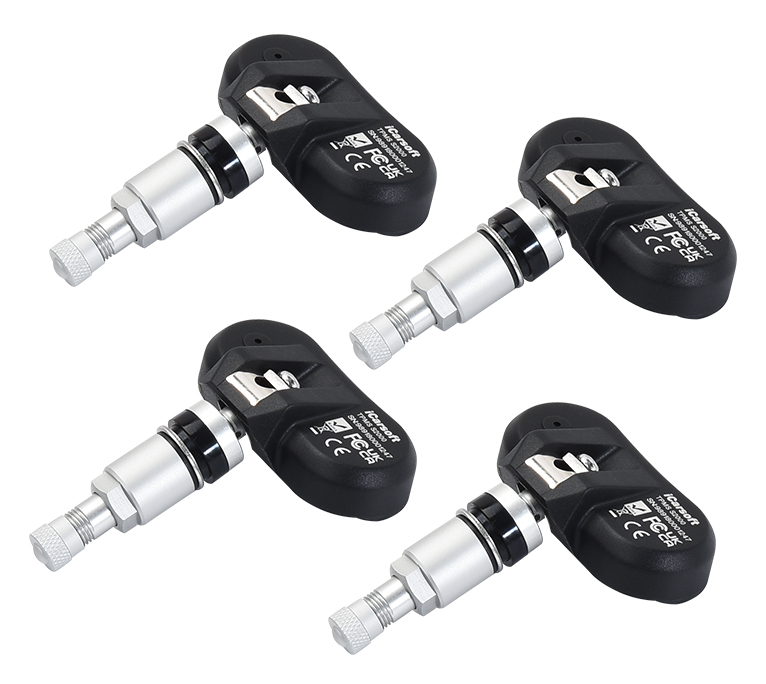

TPMS S2000 |

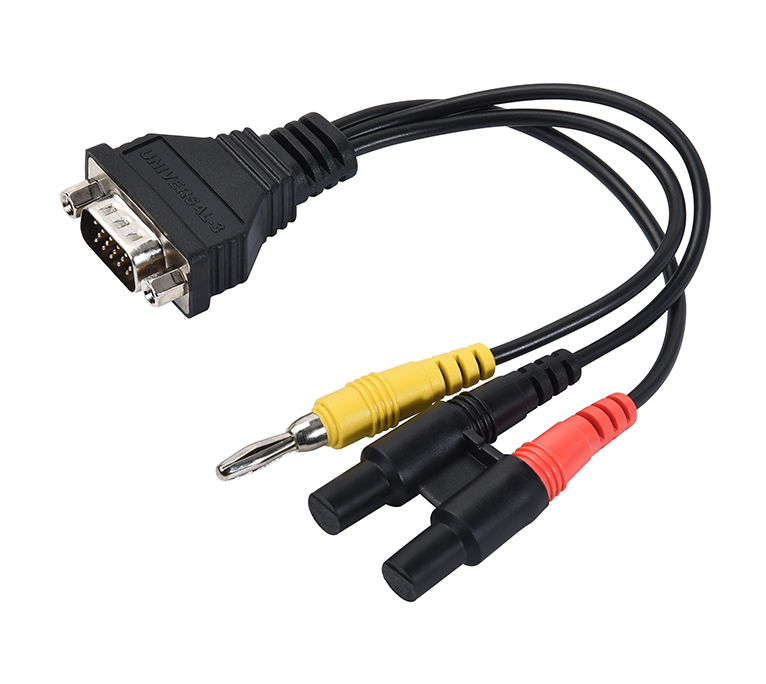

Universal Adapter |

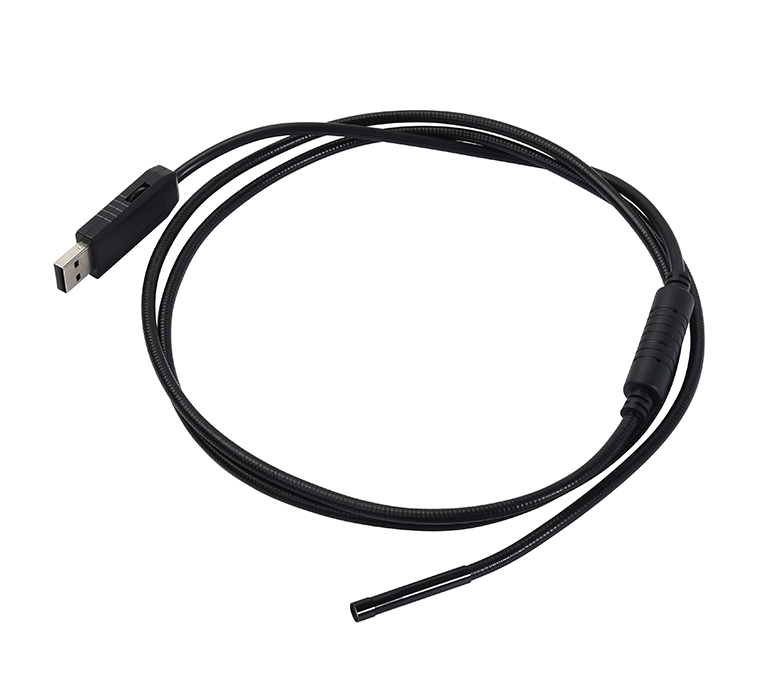

Video Scope |
