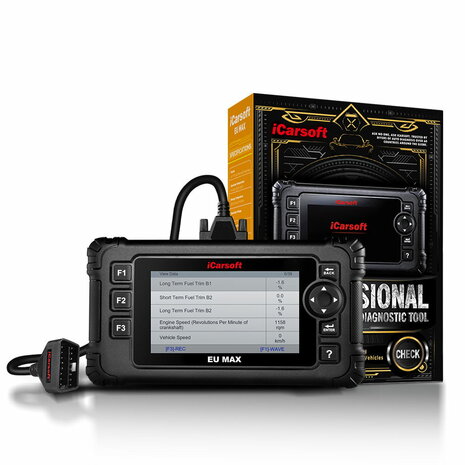

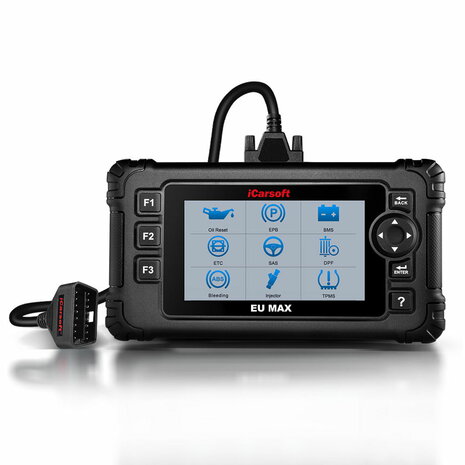

iCarsoft EU Max offers technicians a professional and powerful diagnostic tool to accurately diagnose complex problems. With multi-brand vehicle coverage for European vehicle manufacturers EU MAX enables you to perform full ECU diagnosis for most European vehicle brands. Read and clear DTC from all available systems. Display live data in text, graph or analog for easy data review. Perform service functions and use actuation test / bi-directory test to access vehicle-specific subsystem and component tests.
Current Vehicle Coverage iCarsoft EU MAX
European manufacturers: Alfa Romeo / Audi / BMW / Citroën / Dacia / Fiat / Ford EU / Jaguar / Lancia / LandRover / Mercedes-Benz / Mini / Opel / Peugeot / Porsche / Renault / Saab / Seat / Skoda / Smart / Vauxhall / Volkswagen / Volvo
ICARSOFT EU MAX COMES WITH FREE SOFTWARE UPDATES!
ICARSOFT EU MAX BASIC OBDII FUNCTION
Read Codes | Read generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) permanent and pending Diagnostic Trouble Codes.
Erase Codes | Erase generic and manufacturer specific Diagnostic Trouble Codes.
Determine MIL | Turn off Check Engine Light (MIL) after clearing codes and reset monitors.
DataStream | Read live PCM DataStream. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
Freeze Frame Data | When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
I/M Readiness Test | Indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
O2 Sensor Test | This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
Evap System Test | The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
Battery test | Allows you getting the voltage of battery when the engine starts.
On-Board Monitoring | This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
Vehicle Information | Displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the vehicle.
Comprehensive Help | Including OBD Parameter, Mode Explanations, DTC search & More.
iCarsoft EU MAX OBDII Function supports most of the OBDII/EOBD test modes including CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
iCarsoft EU MAX OBDII Function works on most of 2001 and later European OBDII compliant PETROL vehicles and most of 2004 and later European OBDII compliant DIESEL vehicles.
ICARSOFT EU MAX FEATURES FOR VEHICLE MAKES LISTED
European manufacturers: Alfa Romeo / Audi / BMW / Citroën / Dacia / Fiat / Ford EU / GM / Holden / Jaguar / Lancia / LandRover / Mercedes-Benz / Mini / Opel / Peugeot / Porsche / Renault / Saab / Seat / Skoda / Smart / Vauxhall / Volkswagen / Volvo
Read and clear trouble codes |
On most of the electronic systems such as engine, transmission, ABS, airbag etc.
Support OBDII/EOBD |
(Ten Modes of Operation)
Full ECU Diagnosis
Oil Light / Service Reset (OIL)
Electronic Parking Brake (EPB) |
System maintenance, deactivate and reactivate the EPB system for replacement and initialization.
Battery Management System (BMS) |
Register new battery to the BMS while battery replacement.
Diesel Particulate Filter (DPF) |
Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
ABS Bleeding (BLD) | Release the air to restore ABS brake sensitivity, or relearn while ABS replaced.
Airbag (ABR) |
Crash data reset.
Electronic Throttle Control system (ETC) |
Relearn the throttle va value while clear or replace the throttle valve.
Steering Angle Sensor (SAS) |
Calibrate the steering wheel to straight ahead, or recalibrate SAS while steering part replacement.
Fuel Pump activation (FPP) |
Activate it when replace a new one.
Air Filter (AFS) |
Self-learning process after replacing the air filter.
Body Stability (BSC) |
Function supports routine maintenance of modules, for example reset or delete the adaptation values and start-up the unit.
Engine (ECM) |
Function supports routine maintenance of engine modules, for example reset or delete the adaptation values and calculate fuel consumption.
Trans adaption (TCM) |
Function supports routine maintenance of transmission modules, for example reset adaptation values and adjust the oil level.
Air Suspension (SPS) |
Reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off
ACS (Air Conditioner) |
Function supports routine maintenance of air condition modules. Air conditioning system adaption reset, rese air conditioning compressor, run in air conditioning compressor, stepper motor initialization.
Head Lamp (LAP) |
Maintenance and other related operations (Including AFS setting), and then perform this function for calibration.
Tyre Pressure Monitor System (TPMS) |
Function include displaying sensor IDs from the vehicle`s ECU, inputting TPMS sensor replacement lD and testing sensors.
Engine ldle correction (IDL) |
Can be executed when the idle speed fault is resolved. Adjust the engine speed of the car at idle speed.
Adaption function | Allows you to perform adaptive learning / reset / calibration and other functions for each control module. It includes some important module data for parameter adjustment such as Remote Control Adaptation.
Injector coding (INJ) | relearn the injector control parameter while the injector renewed or replaced.
Actuation Test / Bidirectory Test |
Used to access vehicle-specific subsystem and component tests.
Special Functions |
Seat, door window, roof etc.: Relevant functions for calibration after repairing or replacing.
Applies to most models which equipped with OBDII-16 DLC.
Certain functions may be limited from the vehicle manufacturer due to therequirement of a special factory access code.
The iCarsoft EU MAX covers over 20 years of models, some functions may not beavailable on all years / models.
ICARSOFT EU MAX CONTENTS
- iCarsoft EU MAX Scanner
- OBDII main cable
- Users manual
- PC Connecting cable
- Professional carry case
