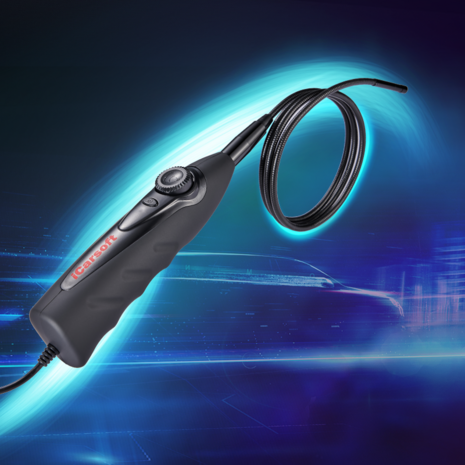

iCarsoft VDSP2000 Videoscope - HD USB Inspection Camera
See the Fault Before You Take Anything Apart.
The iCarsoft VDSP2000 is a professional USB inspection camera for viewing and recording video and still images in places you cannot reach or see. The ultra-slim 5.5 mm fluid-resistant camera head with adjustable LED illumination brings dark, wet and oil-soaked areas into clear view on the screen of your iCarsoft diagnostic tablet.
✓ 720p HD Image ✓ IP67 Fluid-Resistant Probe ✓ 5.5 mm Camera Head ✓ 2.5 m Total Reach ✓ 6-Level Dimmable LED
ICARSOFT VDSP2000 SUPER ADVANTAGES
- HD resolution of 1280 x 720 for a clear, detailed image
- Ultra-slim 5.5 mm camera head fits into most spark plug holes
- IP67 rated probe - suitable for wet and fluid-soaked areas
- LED illumination adjustable across 6 brightness levels
- 1 m flexible gooseneck tube plus 1.5 m USB cable for 2.5 m of reach
- One-touch snapshot button on the handle
- 3-in-1 attachment kit included: hook, mirror and magnet
- USB 2.0, Type-C and Micro USB connection
|
|
ICARSOFT VDSP2000 FEATURES
View and record |
Watch a live HD image on your diagnostic tablet and record video or capture still images for your file, your report or your customer.
One-touch snapshot |
Capture an image with a single press of the button on the handle, without letting go of the probe.
Adjustable LED illumination |
Set the light output across 6 levels with the wheel on the handle, so you get a usable image in a pitch-dark cylinder as well as in a semi-lit engine bay.
Fluid-resistant probe |
The camera head is IP67 rated and can be immersed, which means it can be used in oil, coolant and other automotive fluids.
Reaches where you cannot |
The 5.5 mm head fits into most spark plug holes for cylinder wall and piston crown inspection. The flexible gooseneck tube holds its shape, so the camera stays exactly where you put it.
3-in-1 attachment kit |
Supplied with a hook, a mirror and a magnet attachment for looking around corners and retrieving dropped bolts, nuts and clips.
ICARSOFT VDSP2000 EXAMPLE IMAGES

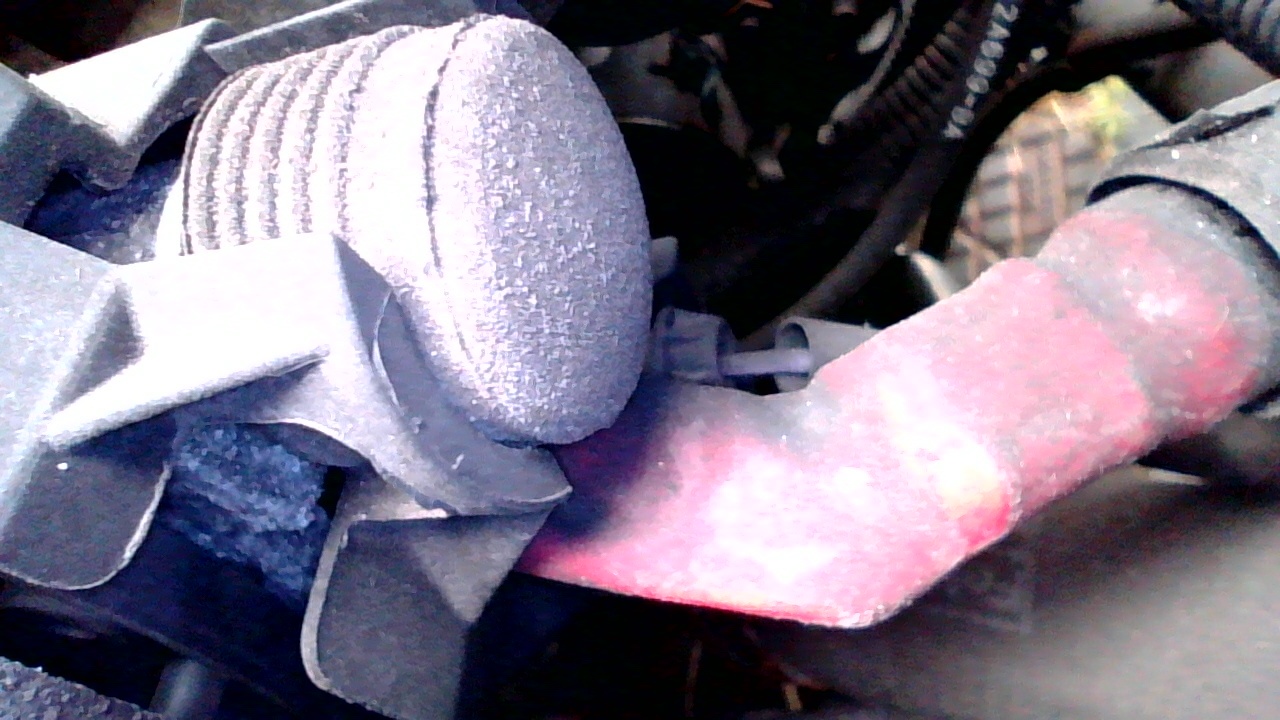

The images below were taken with the VDSP2000 itself, unedited and at the original resolution of 1280 x 720.
ICARSOFT VDSP2000 COMPATIBLE DIAGNOSTIC TOOLS
The VDSP2000 is an extension module and works together with the following iCarsoft diagnostic tools:
The VDSP2000 is an accessory and is not supplied with these diagnostic tools. Please check the videoscope function on your own device, or contact us, before ordering.
ICARSOFT VDSP2000 TECHNICAL SPECIFICATIONS
| Lens Outer Diameter
|
5.5 mm
|
| Tube Outer Diameter
|
4.8 mm
|
| Tube Length
|
1000 mm
|
| USB Cable Length
|
1500 mm
|
| Resolution
|
1280 x 720 (720p HD)
|
| Illumination
|
LED, adjustable across 6 levels
|
| Protection Rating
|
IP67 (camera head)
|
| Operating Temperature
|
0 to 65°C (32 to 149°F)
|
| Power Supply
|
USB 5V
|
| Connection
|
USB 2.0 / Type-C / Micro USB
|
| Certification
|
CE / FCC / RoHS / UKCA
|

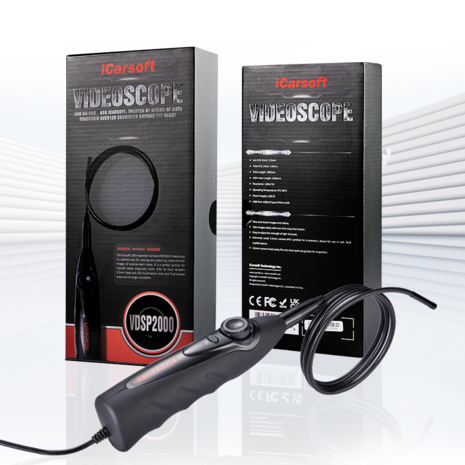

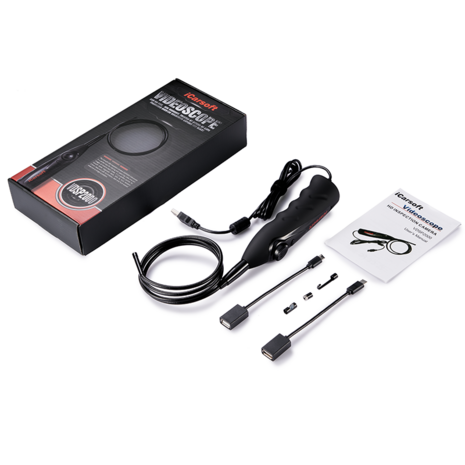

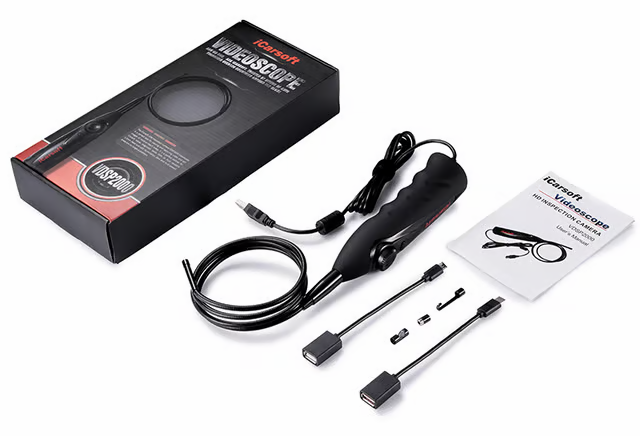

ICARSOFT VDSP2000 CONTENTS
- iCarsoft VDSP2000 Videoscope (with 1 m flexible tube and 1.5 m USB cable)
- 3-in-1 Attachment Kit (hook, mirror and magnet)
- Type-C Connector
- Micro USB Connector
- User Manual
- Packing Box
|
|
ICARSOFT VDSP2000 PRODUCT PHOTOS

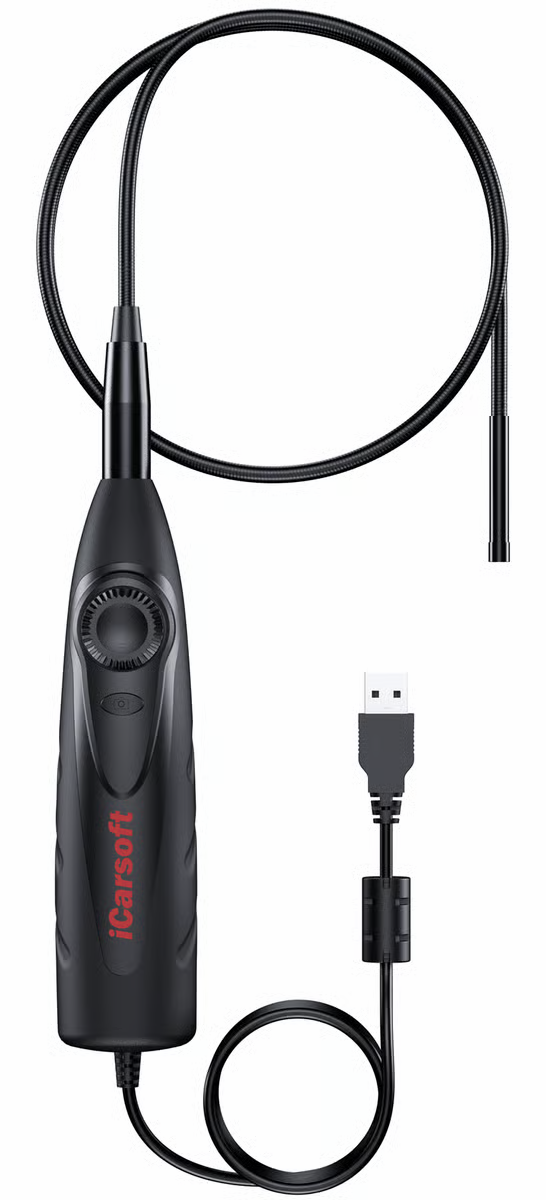

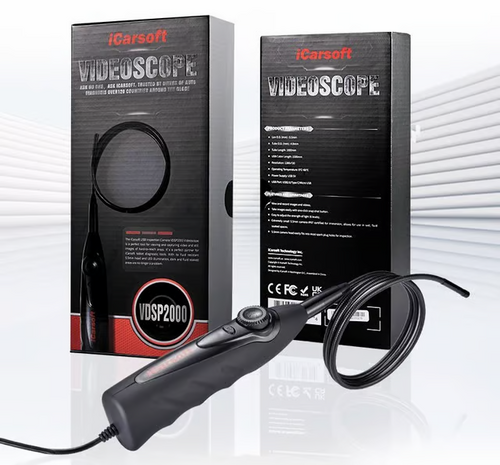

VDSP2000 Videoscope
|

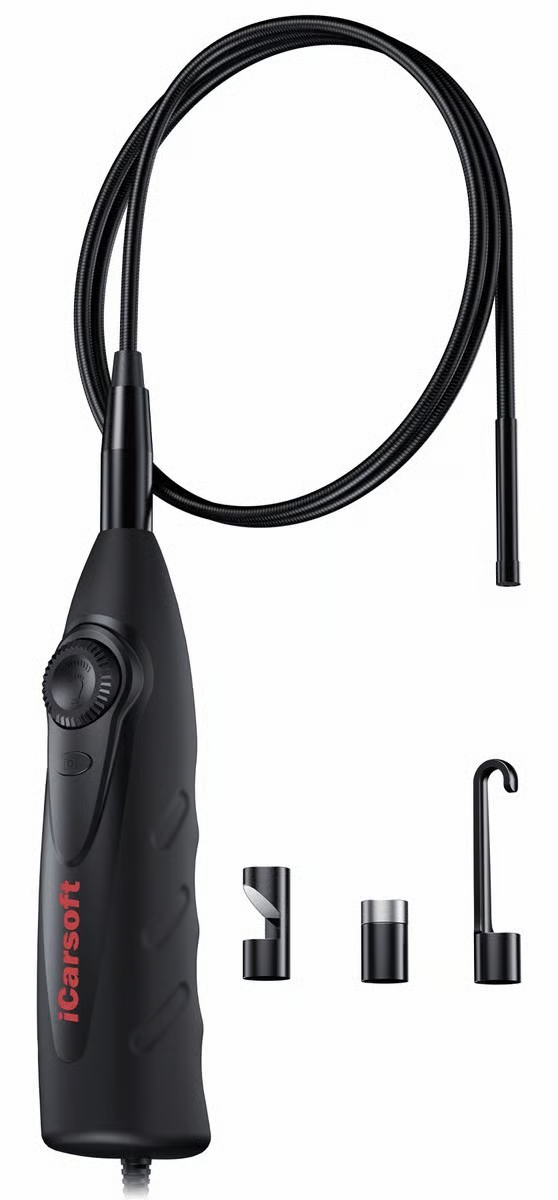

With Attachments
|

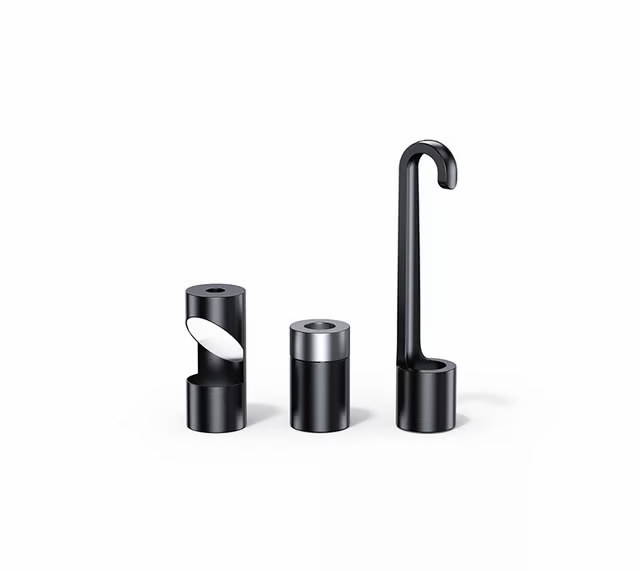

3-in-1 Attachment Kit
|
User Manual
|
ICARSOFT VDSP2000 FAQ
Does the VDSP2000 work with my iCarsoft tool? |
The videoscope works with the CR MAX, CR MAX BT, CR Max P and MT PRO. On these tools you start the camera through the videoscope function in the main menu.
Can the camera be used in oil or coolant? |
Yes. The camera head is IP67 rated and can be immersed in automotive fluids. Clean and dry the probe after use.
Does the camera fit through a spark plug hole? |
The camera head is 5.5 mm and the tube 4.8 mm, which fits most spark plug holes for inspecting the cylinder wall and the piston crown. Always check the opening on your own engine first.
Can it be used on a PC or a phone? |
The VDSP2000 is designed and supplied for use with the iCarsoft diagnostic tools listed above. The supplied Type-C and Micro USB connectors are intended for connection to those devices.
Is the videoscope included with a diagnostic tool? |
No. The VDSP2000 is an optional accessory and is always ordered separately.
